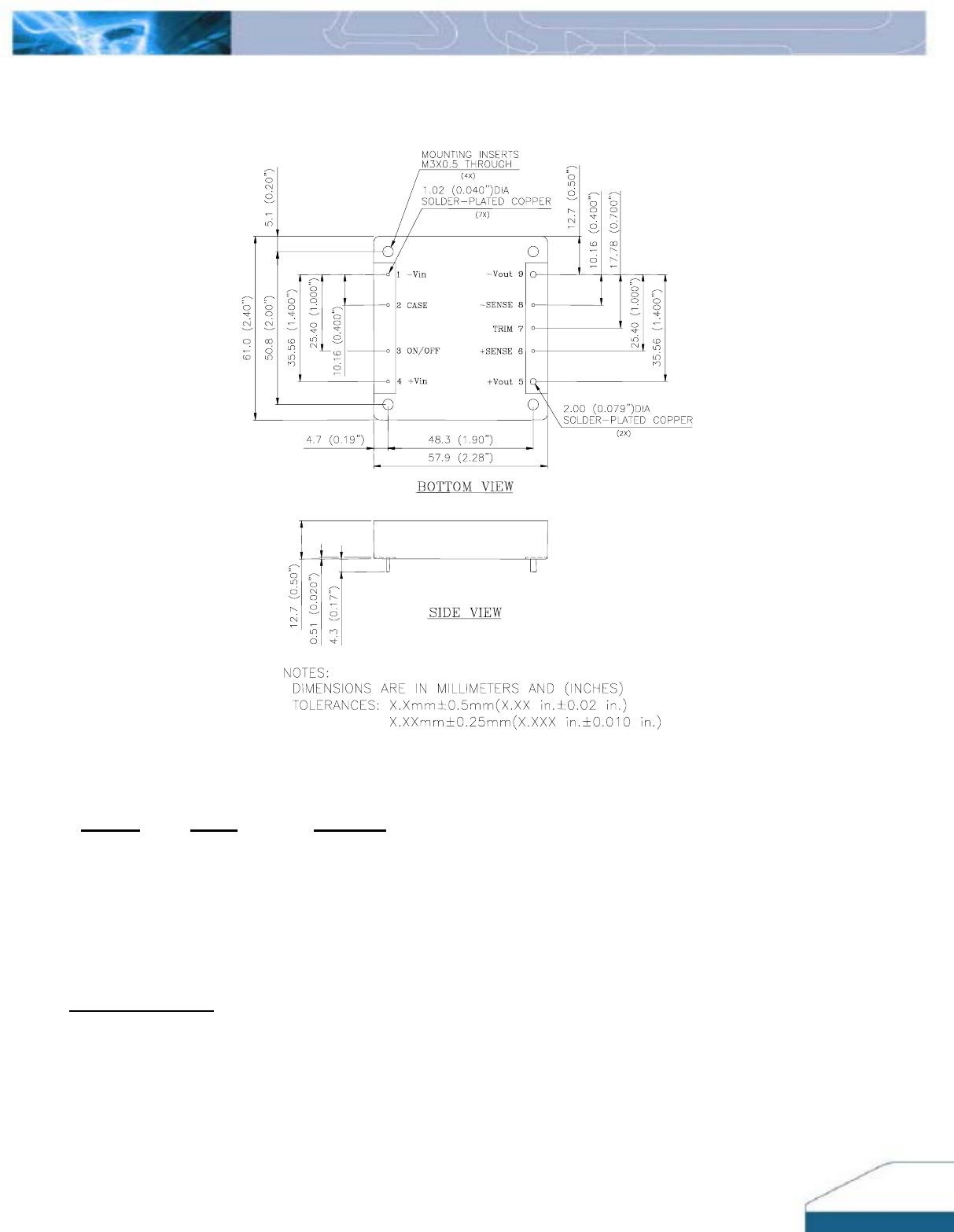

MECHANICAL DRAWING

Pin No. Name Function

1

2

3

4

5

6

7

8

9

-Vin

Case

ON/OFF

+Vin

+Vout

+SENSE

TRIM

-SENSE

-Vout

Negative input voltage

Case Ground

Remote ON/OFF

Positive input voltage

Positive output voltage

Positive remote sense

Output voltage trim

Negative remote sense

Negative output voltage

Pin Specification:

Pins 1-4, 6-8 1.02mm (0.040”) diameter

Pins 5 & 9 2.00mm (0.079”) diameter

All pins are copper with Tin plating.

DS_H48SV05030_08102007

12
